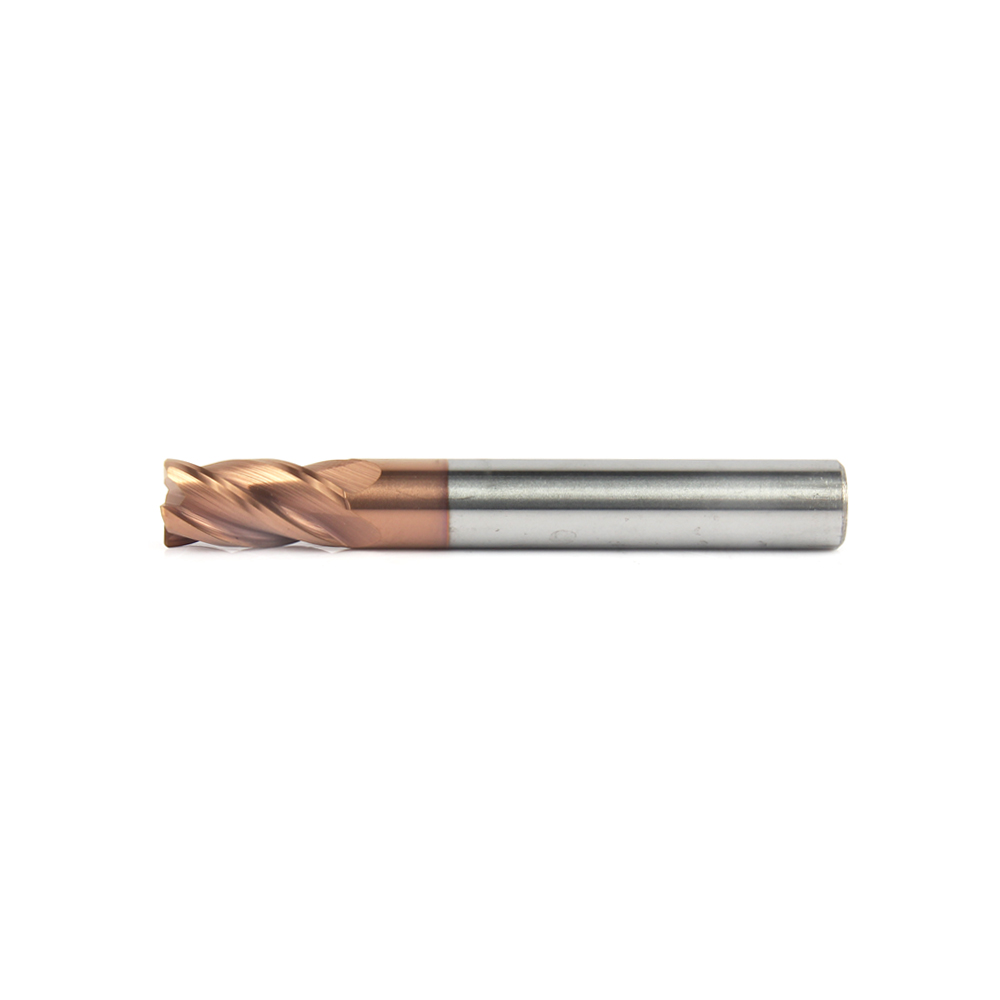

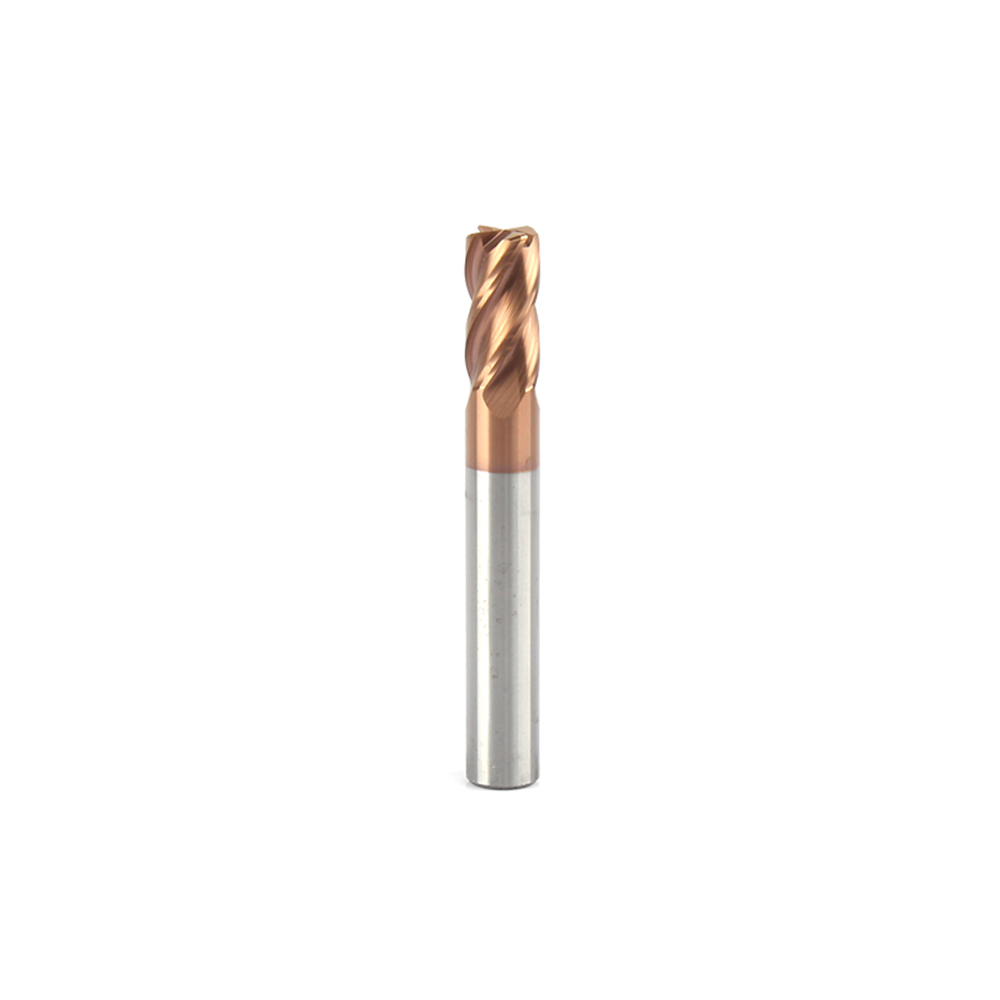

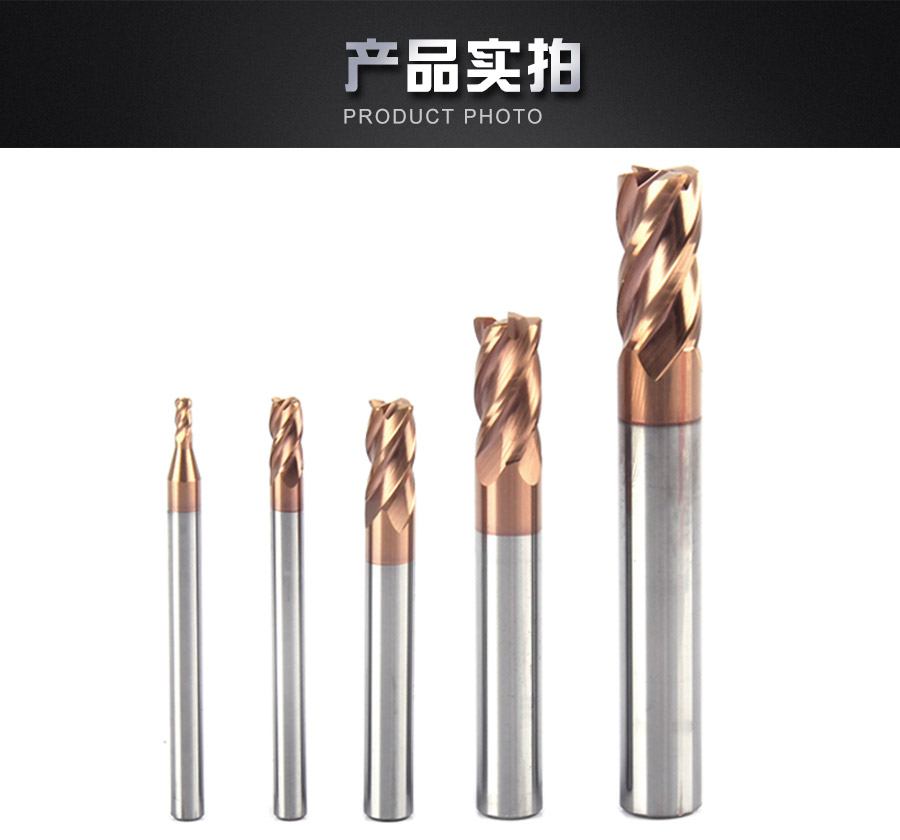

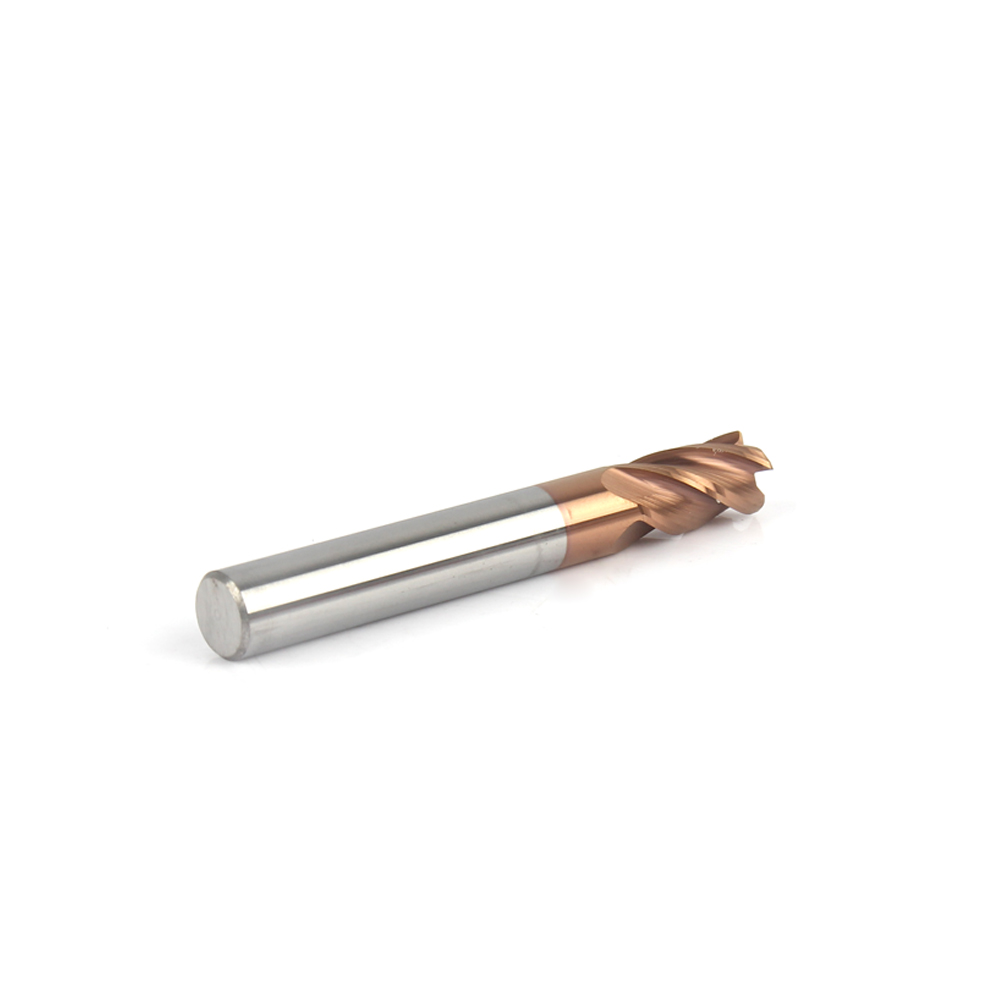

| 產品分類 | 45°鎢鋼立銑刀 |
| 刃數 | 四刃 |
| 材質 | 超微細晶粒鎢鋼棒料 |
| 適用機床 | CNC加工中心、雕刻機、高速機等 |
| 適用材料 | 碳素鋼、合金鋼、鑄鐵、球墨鑄鐵（≤40HRC) 不銹鋼、預硬鋼（≤50HRC） |

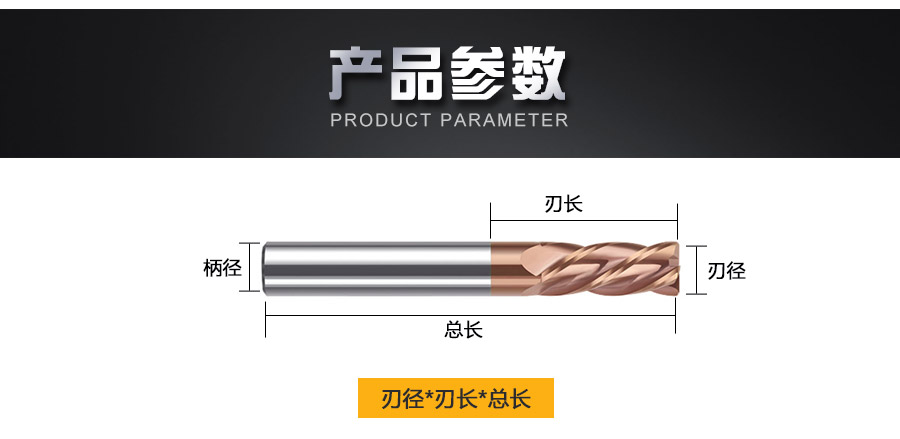

| 型號 | 刃徑 | R角 | 柄徑 | 刃長 | 全長 | 刃數 | 硬度 |
| R0.2D1*3*50 4T 45° | 1 | 0.2 | 4 | 3 | 50 | 4 | 45° |
| R0.2D1*3*50 4T 45° | 1 | 0.2 | 6 | 3 | 50 | 4 | 45° |
| R0.2D1.5*4*50 4T 45° | 1.5 | 0.2 | 4 | 4 | 50 | 4 | 45° |
| R0.2D2*5*50 4T 45° | 2 | 0.2 | 4 | 5 | 50 | 4 | 45° |
| R0.2D2*5*50 4T 45° | 2 | 0.2 | 6 | 5 | 50 | 4 | 45° |
| R0.5D2*6*50 4T 45° | 2 | 0.5 | 4 | 6 | 50 | 4 | 45° |
| R0.2D2.5*8*50 4T 45° | 2.5 | 0.2 | 4 | 8 | 50 | 4 | 45° |
| R0.5D2.5*8*50 4T 45° | 2.5 | 0.5 | 4 | 8 | 50 | 4 | 45° |
| R0.2D3*8*50 4T 45° | 3 | 0.2 | 3 | 8 | 50 | 2 | 45° |
| R0.2D3*8*50 4T 45° | 3 | 0.2 | 4 | 8 | 50 | 4 | 45° |
| R0.3D3*8*50 4T 45° | 3 | 0.3 | 4 | 8 | 50 | 4 | 45° |
| R0.5D3*8*50 4T 45° | 3 | 0.5 | 4 | 8 | 50 | 4 | 45° |
| R0.5D3*8*50 4T 45° | 3 | 0.5 | 6 | 8 | 50 | 4 | 45° |
| R0.2D4*10*50 4T 45° | 4 | 0.2 | 4 | 10 | 50 | 4 | 45° |
| R0.3D4*10*50 4T 45° | 4 | 0.3 | 4 | 10 | 50 | 4 | 45° |
| R0.5D4*10*50 4T 45° | 4 | 0.5 | 4 | 10 | 50 | 4 | 45° |
| R1D4*10*50 4T 45° | 4 | 1 | 4 | 10 | 50 | 4 | 45° |
| R1D4*10*50 4T 45° | 4 | 1 | 6 | 10 | 50 | 4 | 45° |
| R0.3D5*13*50 4T 45° | 5 | 0.3 | 6 | 13 | 50 | 4 | 45° |
| R0.5D5*13*50 4T 45° | 5 | 0.5 | 6 | 13 | 50 | 4 | 45° |
| R1D5*13*50 4T 45° | 5 | 1 | 6 | 13 | 50 | 4 | 45° |
| R0.3D6*15*50 4T 45° | 6 | 0.3 | 6 | 15 | 50 | 4 | 45° |
| R0.5D6*15*50 4T 45° | 6 | 0.5 | 6 | 15 | 50 | 4 | 45° |
| R1D6*15*50 4T 45° | 6 | 1 | 6 | 15 | 50 | 4 | 45° |
| R0.3D8*20*50 4T 45° | 8 | 0.3 | 8 | 20 | 50 | 4 | 45° |
| R0.5D8*20*50 4T 45° | 8 | 0.5 | 8 | 20 | 50 | 4 | 45° |
| R1D8*20*50 4T 45° | 8 | 1 | 8 | 20 | 50 | 4 | 45° |
| R0.5D10*25*75 4T 45° | 10 | 0.5 | 10 | 25 | 75 | 4 | 45° |
| R1D10*25*75 4T 45° | 10 | 1 | 10 | 25 | 75 | 4 | 45° |
| R1.5D10*25*75 4T 45° | 10 | 1.5 | 10 | 25 | 75 | 4 | 45° |
| R2D10*25*75 4T 45° | 10 | 2 | 10 | 25 | 75 | 4 | 45° |
| R0.5D12*30*75 4T 45° | 12 | 0.5 | 12 | 30 | 75 | 4 | 45° |
| R1D12*30*75 4T 45° | 12 | 1 | 12 | 30 | 75 | 4 | 45° |
| R1.5D12*30*75 4T 45° | 12 | 1.5 | 12 | 30 | 75 | 4 | 45° |
| R2D12*30*75 4T 45° | 12 | 2 | 12 | 30 | 75 | 4 | 45° |
| R3D12*30*75 4T 45° | 12 | 3 | 12 | 30 | 75 | 4 | 45° |
| R1D14*35*100 4T 45° | 14 | 1 | 14 | 35 | 100 | 4 | 45° |
| R1.5D14*35*100 4T 45° | 14 | 1.5 | 14 | 35 | 100 | 4 | 45° |
| R2D14*35*100 4T 45° | 14 | 2 | 14 | 35 | 100 | 4 | 45° |
| R3D14*35*100 4T 45° | 14 | 3 | 14 | 35 | 100 | 4 | 45° |
| R1D16*40*100 4T 45° | 16 | 1 | 16 | 40 | 100 | 4 | 45° |
| R1.5D16*40*100 4T 45° | 16 | 1.5 | 16 | 40 | 100 | 4 | 45° |
| R2D16*40*100 4T 45° | 16 | 2 | 16 | 40 | 100 | 4 | 45° |
| R3D16*40*100 4T 45° | 16 | 3 | 16 | 40 | 100 | 4 | 45° |
| R1D18*40*100 4T 45° | 18 | 1 | 18 | 40 | 100 | 4 | 45° |
| R1.5D18*40*100 4T 45° | 18 | 1.5 | 18 | 40 | 100 | 4 | 45° |
| R2D18*40*100 4T 45° | 18 | 2 | 18 | 40 | 100 | 4 | 45° |
| R3D18*40*100 4T 45° | 18 | 3 | 18 | 40 | 100 | 4 | 45° |
